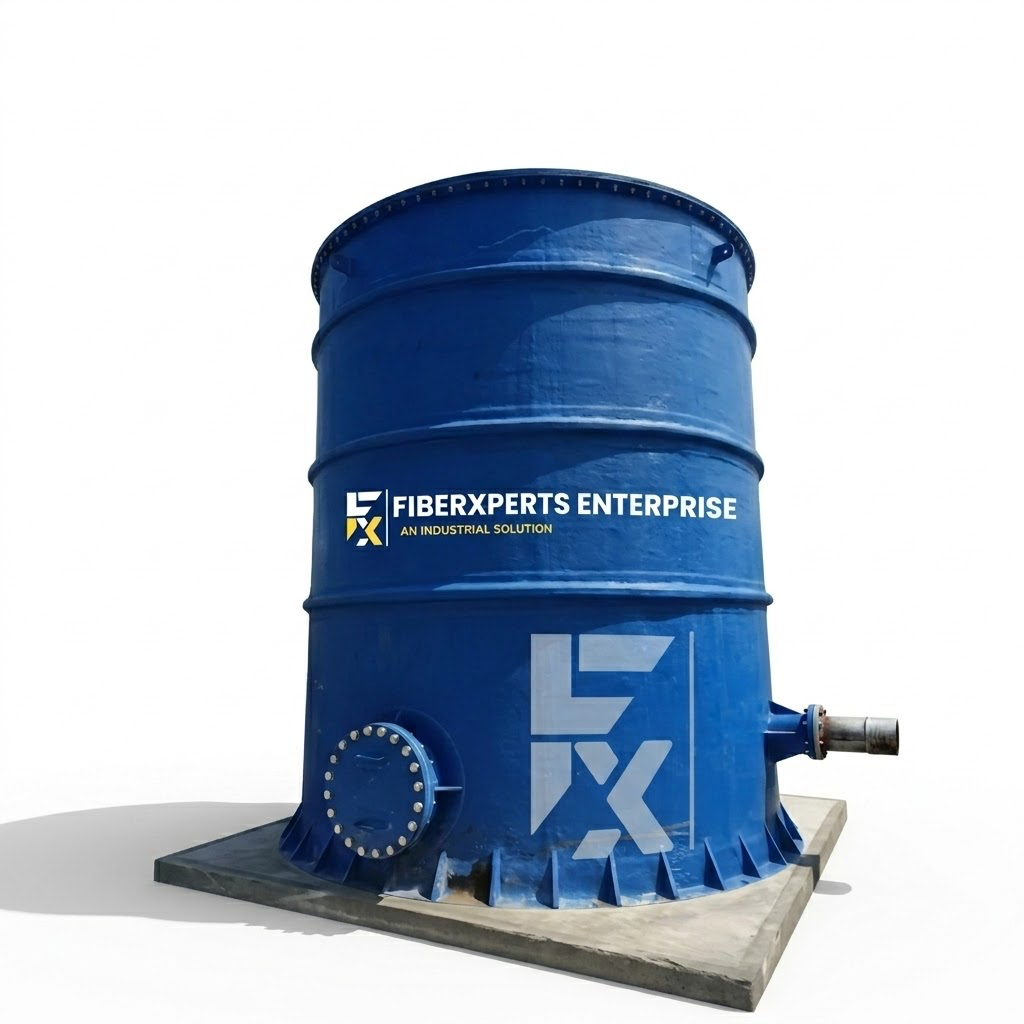

FRP Acid Tank Manufacturer in Bangladesh High-Performance FRP Chemical Storage Tanks for
Corrosive Applications
FiberXperts Enterprise is a leading manufacturer and supplier of FRP Acid Tanks, Chemical Storage
Tanks, FRP Process Tanks, and Industrial Fiberglass Equipment in Bangladesh. Our tanks are
engineered to safely store highly corrosive chemicals, including Hydrochloric Acid (HCl), Sulfuric Acid (H₂SO₄), Nitric Acid, Caustic Soda, Ferric Chloride, and various industrial chemicals.
Designed using premium-grade Vinyl Ester Resin, Isophthalic Resin, and high-strength Fiberglass
Reinforcement, our FRP tanks offer exceptional corrosion resistance, long service life, and low
maintenance requirements, making them the ideal solution for chemical industries, power plants,
textile factories, pharmaceutical manufacturers, water treatment facilities, and food processing plants.
Why Choose FRP Acid Tanks?
Traditional steel and metal tanks are vulnerable to corrosion and chemical attack. FRP (Fiberglass Reinforced Plastic) tanks provide superior protection against aggressive chemicals while offering a lightweight and cost-effective alternative.
Key Benefits
Our FRP Tank Manufacturing Capabilities At FiberXperts Enterprise, every tank is engineered according to the customer's chemical compatibility, operating temperature, pressure requirements, and installation conditions.
- Excellent resistance to acids, alkalis, and corrosive chemicals
- Long service life of 15-25 years under proper operating conditions
- Lightweight construction with high structural strength
- UV-resistant exterior for outdoor installations
- Leak-proof monolithic construction
- Low maintenance and operating costs
- Excellent thermal insulation properties
- Custom-designed for specific chemical applications
- Available with conductive and abrasion-resistant liners
- Suitable for both indoor and outdoor installations
Available Tank Configurations
- Vertical Flat Bottom FRP Tanks
- Vertical Conical Bottom Tanks
- Horizontal FRP Storage Tanks
- Chemical Mixing Tanks
- Agitator Tanks
- Dosing Tanks
- Scrubber Tanks
- Process Tanks
- Water Treatment Tanks
- Underground FRP Tanks
- FRP Reaction Vessels
Tank Capacity Range
We manufacture FRP tanks from: 100 Liters to 100,000+ Liters Custom dimensions and capacities are available based on project requirements.
Premium Raw Materials
To ensure maximum durability and chemical resistance, we use only high-quality raw materials
sourced from trusted suppliers.
Resin Systems
- Vinyl Ester Resin
- Novolac Vinyl Ester Resin
- Isophthalic Polyester Resin
- Bisphenol Resin
- Epoxy Resin
- Terephthalic Resin
- Corrosion-Resistant Polyester Resin
Reinforcement Materials
- Woven Roving
- Fiberglass Mat 350gsm & 450gsm
Manufacturing Process
- Hand Lay-Up Process
- Multi-Layer Structural Lamination
- Controlled Resin-to-Glass Ratio
- Quality-Assured Curing Systems
Industries We Serve
Our FRP Acid Tanks are widely used in:
- Chemical Manufacturing Plants
- Textile and Dyeing Industries
- Pharmaceutical Factories
- Power Plants
- Food & Beverage Industries
- Water and Wastewater Treatment Plants
- Fertilizer Industries
- Pulp & Paper Mills
- Desalination Facilities
- Oil & Gas Industries
- Electroplating Facilities
- Industrial Process Plants
International Design Standards
FiberXperts Enterprise can manufacture tanks according to internationally recognized standards, including:
- ASME RTP-1
- ASTM D3299
- ASTM D4097
- BS EN 13121
- BS 4994
- Customer-Specific Engineering Standards
Quality Assurance Each FRP tank undergoes rigorous quality inspections including:
- Visual Inspection
- Laminate Thickness Verification
- Dimensional Accuracy Checks
- Spark Testing (Optional)
- Hydrostatic Leak Testing
- Resin Cure Verification
- Customer-Specified Quality Requirements
Custom FRP Acid Tank Solutions in Bangladesh
Whether you require a Hydrochloric Acid Tank, Sulfuric Acid Storage Tank, Chemical Mixing Vessel,
Industrial Scrubber Tank, or a complete FRP Piping and Tank System, FiberXperts Enterprise can
design and manufacture a solution tailored to your operational needs. Our engineering team provides complete support from design and material selection to manufacturing, installation, and after-sales service. FiberXperts Enterprise
Bangladesh's trusted manufacturer of FRP Chemical Storage Tanks, FRP Piping Systems, Industrial
Scrubbers, FRP Ducting, FRP Gratings, and Corrosion-Resistant Composite Solutions. Contact us today for technical consultation, tank sizing, material selection, and project quotations.
Vertical FRP Acid Storage Tank Specifications Horizontal FRP Storage Tank Specifications
Square / Rectangular FRP Tank Specifications FRP Tank Thickness vs Design Pressure
Vertical FRP Acid Storage Tank Specifications
Capacity (Liters) | Diameter (mm) | Height (mm) | Design Pressure | Typical Wall Thickness (mm) |
500 | 800 | 1000 | Atmospheric | 5-6 |
1,000 | 1000 | 1300 | Atmospheric | 5-6 |
2,000 | 1300 | 1500 | Atmospheric | 6-8 |
3,000 | 1500 | 1700 | Atmospheric | 6-8 |
5,000 | 1800 | 2000 | Atmospheric | 8-10 |
10,000 | 2400 | 2300 | Atmospheric | 10-12 |
15,000 | 2600 | 2900 | Atmospheric | 10-14 |
20,000 | 2800 | 3300 | Atmospheric | 12-16 |
30,000 | 3200 | 3800 | Atmospheric | 14-18 |
50,000 | 3800 | 4500 | Atmospheric | 16-22 |
100,000 | 5000 | 5200 | Atmospheric | 20-30 |
Horizontal FRP Storage Tank Specifications
Capacity (Liters) | Diameter (mm) | Length (mm) | Design Pressure | Typical Wall Thickness (mm) |
1,000 | 900 | 1600 | Atmospheric | 5-6 |
2,000 | 1200 | 1800 | Atmospheric | 6-8 |
3,000 | 1300 | 2300 | Atmospheric | 6-8 |
5,000 | 1500 | 3000 | Atmospheric | 8-10 |
10,000 | 1800 | 4200 | Atmospheric | 10-12 |
15,000 | 2200 | 4200 | Atmospheric | 10-14 |
20,000 | 2200 | 5600 | Atmospheric | 12-16 |
30,000 | 2500 | 6200 | Atmospheric | 14-18 |
50,000 | 2800 | 8200 | Atmospheric | 16-22 |
Square / Rectangular FRP Tank Specifications
Capacity (Liters) | Length (mm) | Width (mm) | Height (mm) | Typical Wall Thickness (mm) |
500 | 1000 | 700 | 700 | 5-6 |
1,000 | 1200 | 1000 | 850 | 5-6 |
2,000 | 1500 | 1200 | 1100 | 6-8 |
3,000 | 1800 | 1300 | 1300 | 6-8 |
5,000 | 2000 | 1600 | 1600 | 8-10 |
10,000 | 2500 | 2000 | 2000 | 10-12 |
15,000 | 3000 | 2200 | 2300 | 12-14 |
20,000 | 3500 | 2500 | 2300 | 14-16 |
FRP Tank Thickness vs Design Pressure
Design Condition | Typical Thickness Range |
Atmospheric Storage | 5-10 mm |
Up to 0.2 Bar | 8-12 mm |
Up to 0.5 Bar | 12-18 mm |
Up to 1.0 Bar | 18-30 mm |
Vacuum Service | Custom Engineering Required |
High Temperature Service | Custom Engineering Required |
