FRP REDUCER (Concentric & Eccentric) Manufacturer in Bangladesh High-Performance FRP Reducers for Industrial Piping
Systems
FiberXperts Enterprise manufactures premium-quality FRP Reducers designed for corrosive and demanding industrial environments. Our FRP Concentric Reducers and FRP Eccentric Reducers are engineered to provide smooth and efficient transitions between different pipe diameters while maintaining flow efficiency, structural integrity, and long-term corrosion resistance.
Manufactured using high-grade Vinyl Ester Resin, Epoxy Resin, and Fiberglass Reinforcement, our
reducers are suitable for handling acids, alkalis, wastewater, process chemicals, and industrial fluids in
a wide range of industries.
What is an FRP Reducer?
An FRP Reducer is a specialized pipe fitting used to connect pipes of different diameters within a piping system. Reducers help maintain proper flow characteristics while minimizing turbulence, pressure loss, and mechanical stress. We manufacture two primary types: FRP Concentric Reducer
A concentric reducer has a common centerline and is primarily used in vertical piping systems or
where flow symmetry is required.

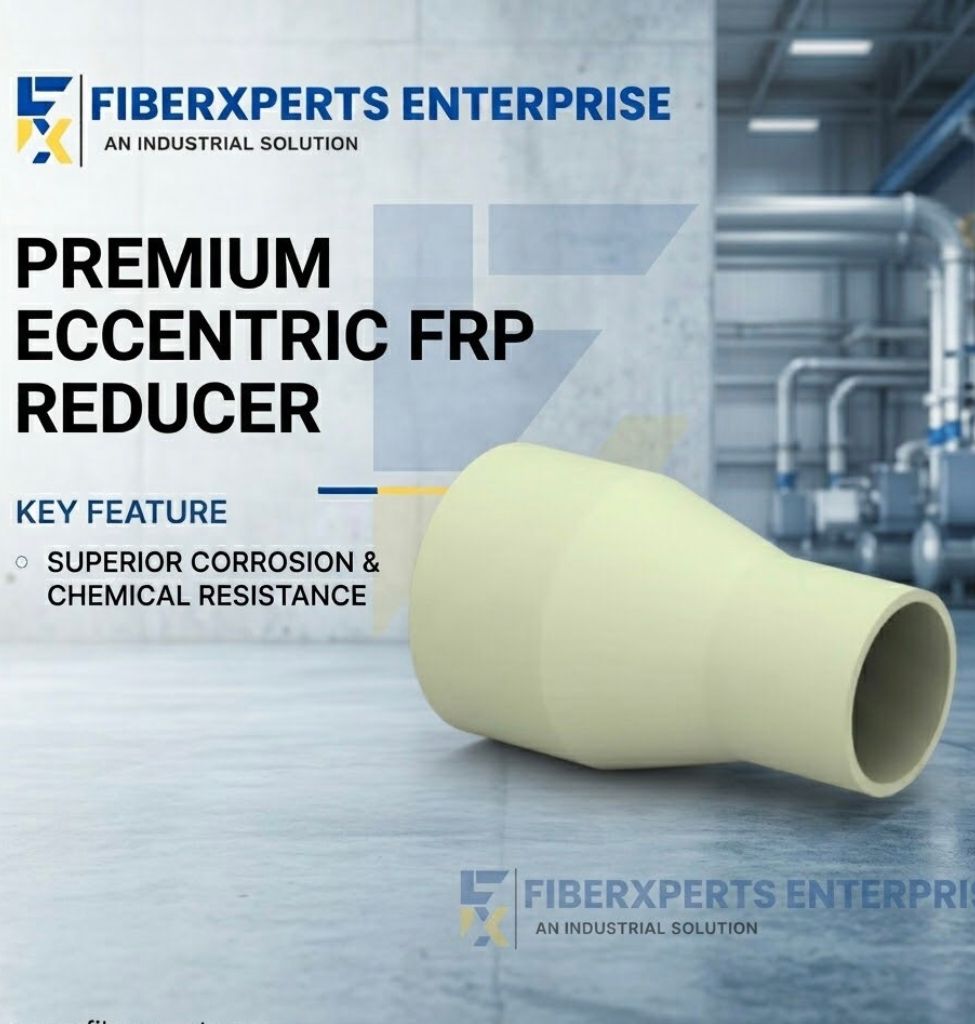

FRP Eccentric Reducer
An eccentric reducer has offset centerlines and is commonly used in horizontal piping systems to
prevent air pockets and ensure smooth flow.
Both types can be supplied with:
- Plain Ends
- Flanged Ends
- Custom Fabricated Connections
- Project-Specific Dimensions
Key Features
- Excellent chemical and corrosion resistance
- Suitable for acids, alkalis, and aggressive chemicals
- Lightweight and easy to install
- High mechanical strength
- Smooth internal surface for improved flow efficiency
- Low maintenance requirements
- Leak-resistant construction
- UV and weather-resistant design
- Long service life in industrial environments
- Custom manufacturing according to project specifications
Technical Specifications
Parameter | Specification |
Diameter Range | 50 mm - 2000 mm+ |
Thickness | As Per Design Requirement |
Length | Custom Fabrication |
Pressure Rating | Up to 20 Bar |
Temperature Range | Based on Resin Selection |
Construction Method | Hand Lay-Up / Contact Molding |
End Connections | Plain End / Flanged End |
Resin Systems | Vinyl Ester, Epoxy, Isophthalic |
Technical Specifications Manufacturing Process
Our FRP reducers are fabricated using advanced composite manufacturing techniques to ensure dimensional accuracy and long-term durability.
Production Methods
- Hand Lay-Up Process
- Contact Molding
- Multi-Layer Structural Lamination
- Continuous Woven Roving Reinforcement
- Resin-Rich Corrosion Barrier Construction
Each reducer is engineered with an optimized resin-to-glass ratio to achieve superior strength,
corrosion resistance, and operational reliability.
Available Resin Systems
Depending on operating conditions and chemical compatibility requirements, we offer:
Our engineering team selects the most suitable resin system based on temperature, pressure, and chemical exposure.
- Vinyl Ester Resin
- Novolac Vinyl Ester Resin
- Epoxy Resin
- Isophthalic Polyester Resin
- Bisphenol Resin
- Corrosion-Resistant Polyester Resin
Applications
Our FRP reducers are widely used in:
- Acid Transfer Lines
- Chemical Processing Plants
- Water Treatment Facilities
- Effluent Treatment Plants (ETP)
- Power Plants
- Textile & Dyeing Industries
- Pharmaceutical Manufacturing
- Fertilizer Industries
- Industrial Scrubber Systems
- Fume Extraction Networks
- Desalination Plants
- Industrial Process Piping
Quality Assurance
At FiberXperts Enterprise, every FRP reducer undergoes strict quality control procedures, including:
Our quality assurance system ensures reliable performance and long service life under challenging industrial conditions.
Why Choose FiberXperts Enterprise?
We work closely with factories, consultants, EPC contractors, and industrial clients to provide customized FRP piping components that meet exact project requirements.
- Dimensional Inspection
- Visual Examination
- Thickness Verification
- Resin Cure Testing
- Mechanical Integrity Checks
- Leak Testing (Where Applicable)
- Customer-Specified Quality Tests
- Custom Manufacturing Capability
- Premium Grade Raw Materials
- Experienced Engineering Team
- Competitive Pricing
- Strict Quality Control
- Fast Project Delivery
- Technical Design Support
- Complete FRP Piping System Solutions
Request a Quotation
Looking for high-quality FRP Concentric Reducers or Eccentric Reducers in Bangladesh? FiberXperts Enterprise provides custom-designed FRP piping solutions engineered for durability,
safety, and long-term performance. Contact our engineering team today for technical consultation,
sizing recommendations, and project quotations.
