FRP COATED MS TANK Manufacturer in Bangladesh Corrosion-Resistant FRP Coated MS Tanks & FRP Lined
Storage Tanks
FiberXperts Enterprise specializes in the design, manufacturing, coating, lining, repair, and
refurbishment of FRP Coated MS Tanks and FRP Lined Storage Tanks for industrial applications. Our
solutions combine the structural strength of Mild Steel (MS) with the superior corrosion resistance of
Fiberglass Reinforced Plastic (FRP), creating durable and cost-effective storage systems for
aggressive chemical environments. We manufacture both cylindrical and rectangular tanks and provide customized solutions according to client specifications, storage capacity requirements, operating conditions, and chemical compatibility.
What Are FRP Coated & FRP Lined MS Tanks?

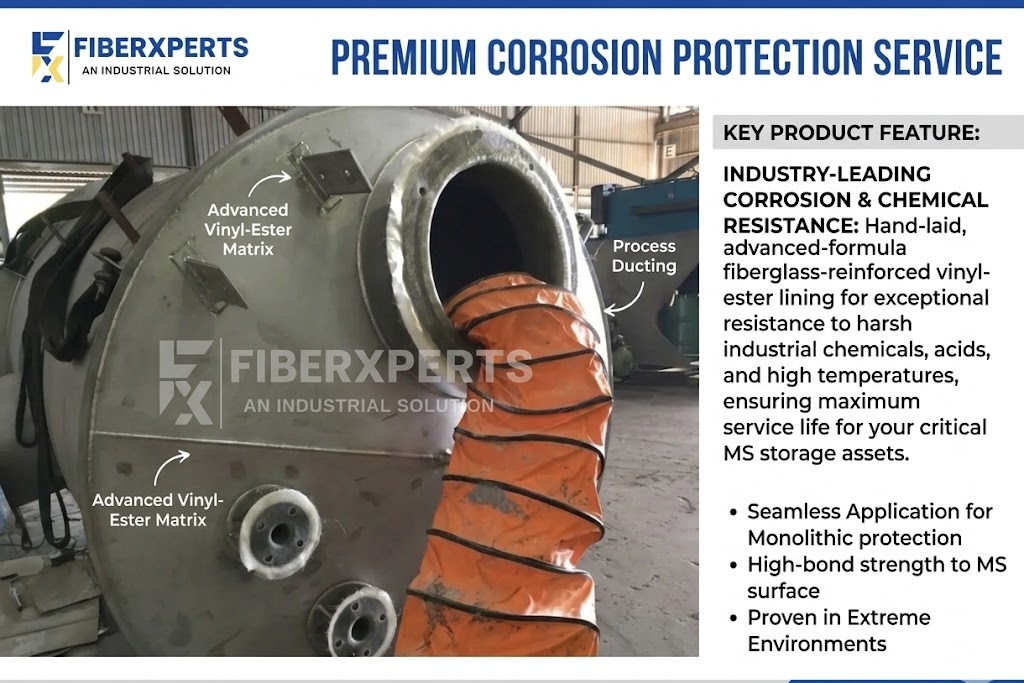

FRP Coated MS Tanks are steel storage tanks protected externally with a fiberglass-reinforced coating that prevents corrosion caused by moisture, chemicals, and environmental exposure. FRP Lined MS Tanks feature an internal FRP lining that protects the steel structure from corrosive chemicals, acids, alkalis, and industrial liquids while maintaining the structural integrity of the tank. This combination provides the strength of steel and the chemical resistance of advanced composite materials.
Available Tank Types Cylindrical FRP Lined Tanks
Ideal for storing chemicals, water, process liquids, and industrial solutions.
Rectangular FRP Lined Tanks
Suitable for ETP plants, process tanks, treatment systems, and customized industrial applications.
Vertical Storage Tanks
Designed for maximum storage capacity with minimum floor space.
Horizontal Storage Tanks
Suitable for transportation, process systems, and specialized industrial installations.
Key Features
- Excellent corrosion resistance
- High structural strength
- Suitable for aggressive chemicals
- Leak-resistant construction
- Long service life
- UV and weather resistant
- Low maintenance requirements
- Cost-effective alternative to full FRP tanks
- Custom-designed dimensions and capacities
- Easy repair and refurbishment options
Applications
Our FRP coated and lined tanks are widely used in:
- Chemical Processing Plants
- Textile & Dyeing Industries
- Water Treatment Plants
- Effluent Treatment Plants (ETP)
- Pharmaceutical Industries
- Fertilizer Industries
- Food Processing Facilities
- Power Plants
- Electroplating Industries
- Industrial Manufacturing Facilities
Suitable Storage Media
Our tanks can be designed for storing:
Resin selection is customized according to the chemical being stored.
- Hydrochloric Acid (HCl)
- Sulfuric Acid
- Nitric Acid
- Caustic Soda
- Industrial Chemicals
- Process Water
- Wastewater
- Saltwater
- Liquid Fertilizers
- Industrial Effluents
Manufacturing Materials Resin Systems
- Vinyl Ester Resin
- Novolac Vinyl Ester Resin
- Epoxy Resin
- Isophthalic Polyester Resin
- Bisphenol Resin
Reinforcement Materials
Tank Refurbishment & Repair Services
FiberXperts Enterprise also specializes in repairing and extending the life of old and corroded MS tanks through advanced FRP lining and coating systems.
Services Include:
These services significantly increase tank lifespan while reducing replacement costs.
- Internal FRP Relining
- External FRP Coating
- Corrosion Damage Repair
- Leak Repair
- Structural Reinforcement
- Protective Chemical Lining
Manufacturing Process Internal FRP Lining
- Surface Preparation
- Abrasive Blasting
- Corrosion Barrier Application
- Multi-Layer FRP Lamination
- Controlled Resin Curing
- Final Quality Inspection
External FRP Coating
- Surface Cleaning
- Primer Application
- Fiberglass Reinforcement
- Protective Resin Coating
- UV Resistant Top Layer (Optional)
Technical Specifications
Parameter | Specification |
Tank Type | Cylindrical / Rectangular |
Capacity Range | 500 Liters - 100,000+ Liters |
Construction Material | MS Tank with FRP Lining/Coating |
Lining Thickness | As Per Chemical Requirement |
Coating Thickness | Custom Designed |
Operating Temperature | Based on Resin Selection |
Installation | Indoor / Outdoor |
Quality Assurance
Every tank undergoes comprehensive quality inspections including:
This ensures reliable and long-term performance under industrial operating conditions.
Why Choose FiberXperts Enterprise?
- Dimensional Verification
- Laminate Thickness Inspection
- Visual Inspection
- Resin Cure Testing
- Leak Testing
- Chemical Compatibility Verification
- Custom Tank Manufacturing
- FRP Lining & Coating Specialists
- Premium Quality Materials
- Experienced Engineering Team
- Competitive Pricing
- Fast Project Delivery
- Tank Repair & Refurbishment Services
- Complete Corrosion Protection Solutions
Request a Quotation
Looking for FRP Coated MS Tanks or FRP Lined Storage Tanks in Bangladesh? FiberXperts Enterprise provides complete tank manufacturing, lining, coating, repair, and
refurbishment solutions for industrial applications. Contact our engineering team today for technical
consultation and project-specific quotations.
