Project Overview
A severely corroded Mild Steel (MS) storage tank used for highly corrosive Hydrochloric Acid (HCL) service was failing due to continuous chemical attack and structural degradation.
To eliminate recurring corrosion issues and improve operational safety, the MS tank was successfully replaced with a 12,000-liter FRP storage tank system designed for high chemical resistance and long-term durability.
The project was executed by FiberXperts Enterprise using advanced FRP fabrication technology with Vinyl Ester resin and multiple layers of roving fiber reinforcement.
Technical Challenge
The original MS tank was unsuitable for long-term HCL storage due to:
Severe internal corrosion from HCL exposure
Frequent maintenance and leakage risk
Structural weakening of steel body
Safety hazards in chemical handling
Reduced operational lifespan
A complete replacement with a corrosion-proof system was required.
Solution Provided

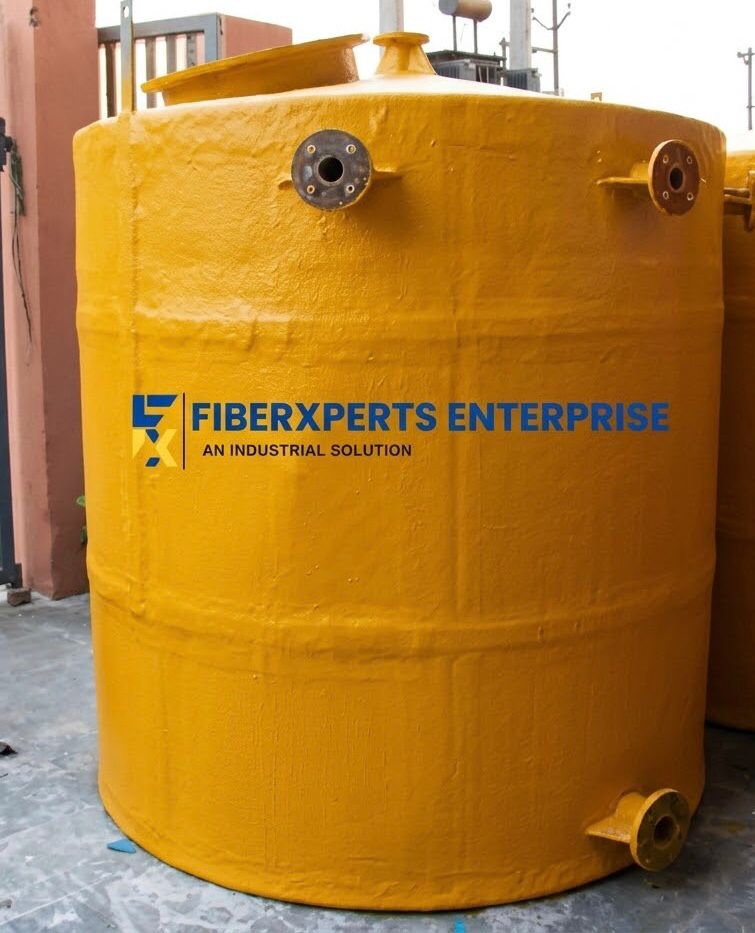

FiberXperts Enterprise designed, manufactured, and installed a 12,000-liter FRP HCL storage tank engineered specifically for aggressive chemical environments.
Key Work Scope:
Custom FRP tank design and engineering
Fabrication using multi-layer roving fiber reinforcement
Vinyl Ester resin application for chemical resistance
Quality-controlled curing and finishing
Removal of old MS tank
Installation and commissioning of new FRP tank
Technical Specifications
Parameter | Specification |
Tank Capacity | 12,000 Liters |
Application | Hydrochloric Acid (HCL) Storage |
Previous System | Mild Steel (MS) Tank |
New Material | Fiberglass Reinforced Plastic (FRP) |
Resin System | Vinyl Ester Resin |
Reinforcement | Multi-layer Roving Fiber |
Chemical Resistance | High Resistance to Strong Acids |
Service Type | Storage Tank Replacement |
Project Execution Team
A dedicated 7-member expert team successfully executed the project:
Project Engineer
Design Engineer
Site Supervisor
4 Expert FRP Fabricators & Technicians
Project Timeline
Total Completion Time: 10 Days
Scope: Fabrication + Installation + Commissioning
Downtime: Minimized through planned execution
Results & Benefits
Immediate Results
Complete replacement of failed MS tank
Safe and leak-proof HCL storage system
Restored production reliability
Long-Term Benefits
Excellent resistance to HCL corrosion
Extended service life compared to MS tanks
Reduced maintenance and operational cost
Improved safety in chemical handling
High structural strength and durability
Conclusion
The successful replacement of a corroded MS tank with a 12,000-liter FRP HCL storage tank demonstrates FiberXperts Enterprise's capability in delivering advanced chemical storage solutions. Using Vinyl Ester resin and reinforced roving layers, the new system ensures long-term reliability, safety, and corrosion resistance in highly aggressive chemical environments.
